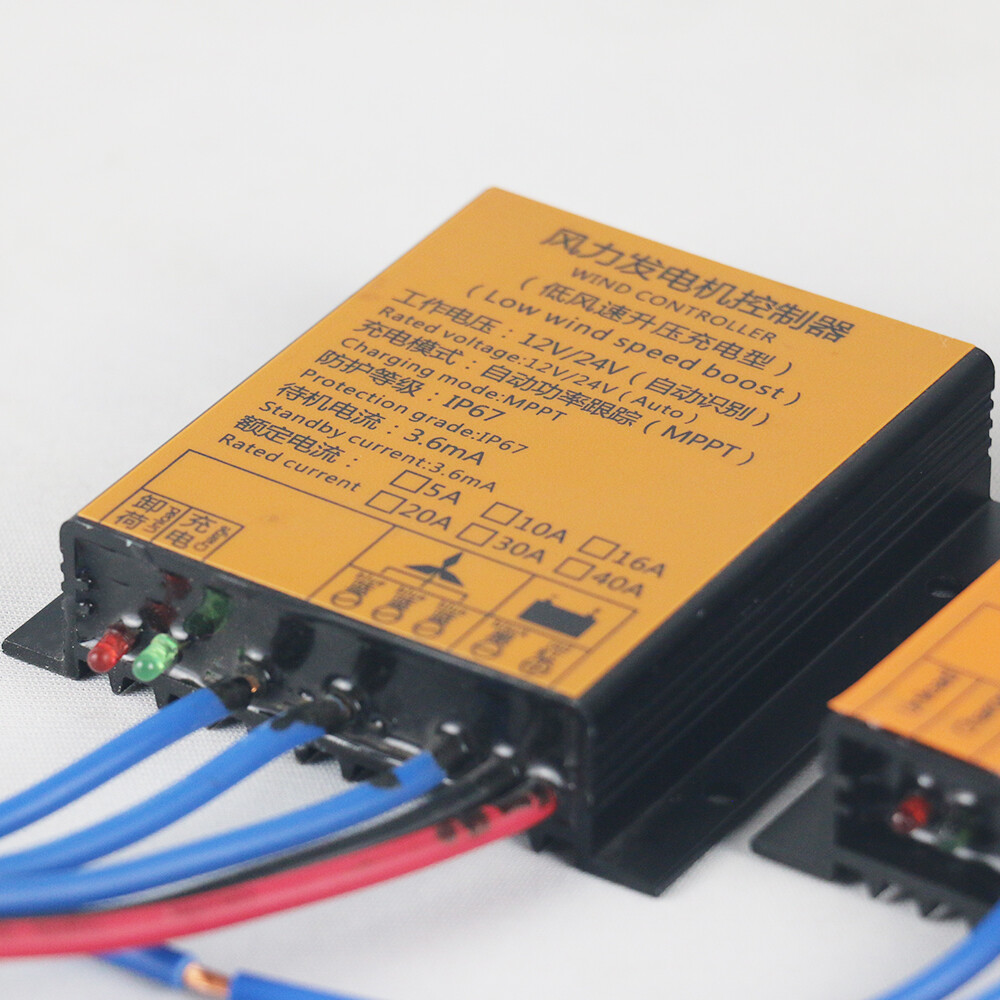

800w Wind Turbine Charge Controller Mppt Generator

MPPT 100W-800W Wind turbine charge controller regulator generator 12V 24V 48V IP67

Features:
1. Good quality technical components guarantee its stability and reliability.
2. Complete electrical protection features that make the system more reliable.
3. Anti-water,anti-dust shell make it applicable in various outdoor environment.
4. Voltage/current control charging make sure storage batteries are
5. Alloy design,small size,good for heat dissipation.

Specification:
Fit for Voltage: DC12V/24V/48V
Maximum wind-generator power: 400W/500W/600W/800W/
Waterproof: IP67
Protection: Battery overvoltage protect,wind-generator current limit,wind-generator brake,speed protection
Indicator: LED
Capability: Mode charge
Unloading way: MPPT electrodeless and noiseless unloading
Working temperature: -35℃ +75℃/85%RH(no condensing)
Size: 95 x 65x 20mm

Package included:
1 x Wind Generator Controller

1. Controller Features

This boost charging fan controller has built-in MPPT boost charging components, and starts charging when low voltage and low wind speed are reached:

1. Suitable for fans within 100W-800W.

2. Rated current is 10A/16A

3. Automatic identification of battery voltage 12V/24V.

4. IP67 protection class

5. Built-in MPPT tracking component, low wind speed and low voltage boost power generation effect. Does not hold the fan.

2. Wiring method

   The controller has 5 external wires:

    3 blue wires----external wind turbine

    Red wire --------- connect to battery + pole

    Black wire---------Connect battery-pole

3. Definition of indicator light indication:

   There are 2 indicator lights

   Red indicator light----1. Lights up when fan unloading or braking occurs. 2---It flashes when it is powered on.

   Yellow indicator ---- When the boost charging starts, it flashes; the faster it flashes, the greater the charging current.
